Description

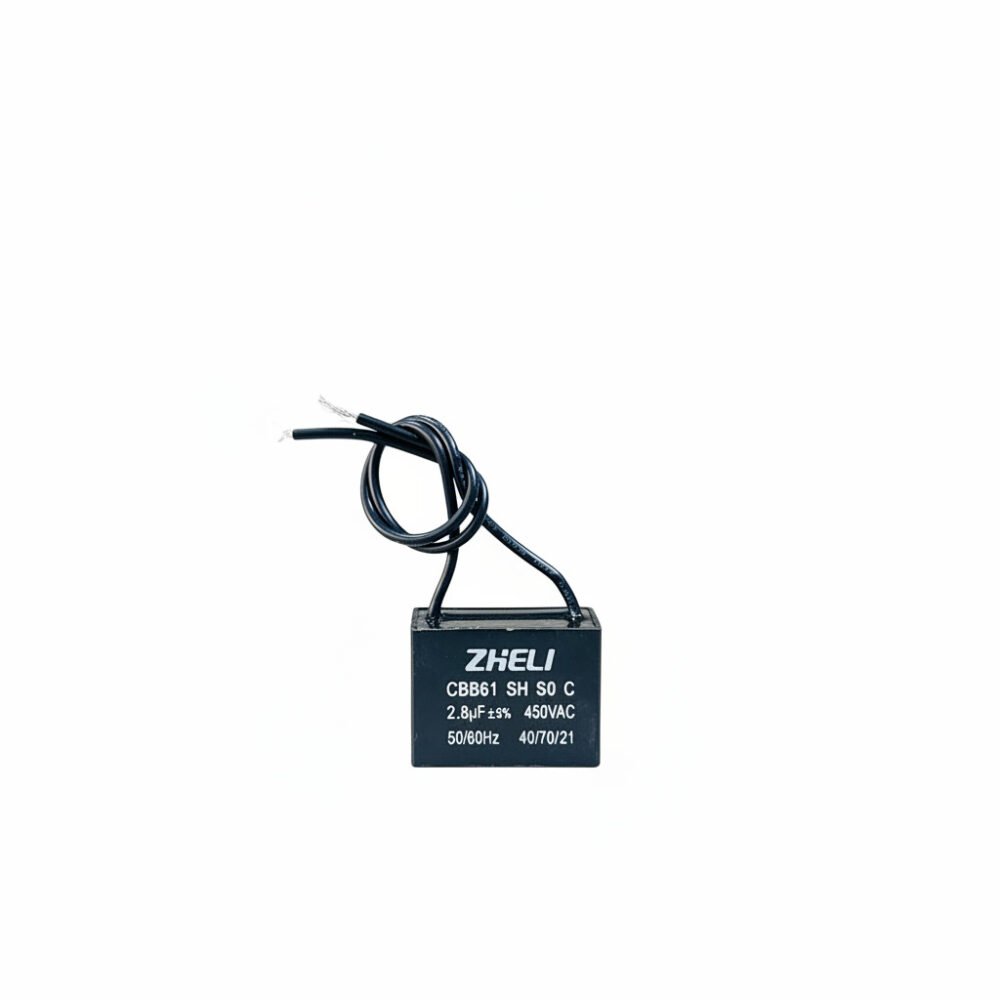

2.8uF Fan Capacitor

Bring your ceiling fan, wall fan, or exhaust fan back to optimal speed with the durable CBB61 2.8uF Fan Capacitor. Featuring a metallized polypropylene film dielectric, this motor run capacitor delivers low electrical loss, high insulation resistance, and superior stability under temperature changes. It provides the essential phase-shift current needed for smooth motor starting and continuous running.

Key Features & Benefits

• High Reliability & Self-Healing: Built to recover automatically from minor electrical spikes, extending operating lifespan.

• Low Loss Design: Excellent energy efficiency ensures minimal heating during extended fan operation.

• Heavy-Duty Voltage Rating: Operates safely at up to 450VAC to withstand local voltage fluctuations.

• Flame-Retardant Casing: Enclosed in a compact plastic shell with epoxy resin filling for heat resistance and safety.

Technical Specifications

• Model / Type: CBB61

• Capacitance: 2.8 uF (Microfarads)

• Tolerance:   5%

• Rated Voltage: 450VAC

• Rated Frequency: 50Hz / 60Hz

• Operating Temperature: -40 – +70

• Construction: Metallized polypropylene film in flame-retardant plastic case

Applications

• Ceiling fans, standing fans, and wall-mounted fans

• Ventilation and exhaust fans

• Range hood blower motors

• Small single-phase AC motors
