Heavy-Duty 8-Pin Round Plug-in Power Relay | 12V, 24V, 230V Control Switch

Meta Description

Upgrade your control panels with our reliable 8-Pin Round Plug-In Power Relays. Available in 12V AC/DC, 24V AC/DC, and 230V AC coil voltages, these versatile DPDT relays support up to 10A switching. Perfect for industrial automation, HVAC, and custom control circuits. Shop now for a durable, clear-case diagnostic solution!

Product Overview

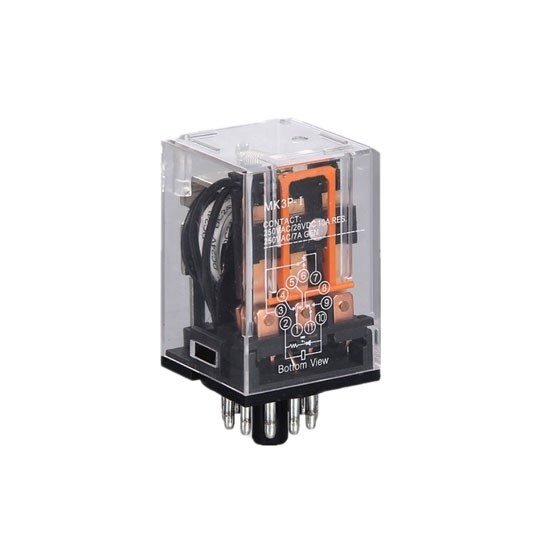

Our 8-Pin Round Plug-In Power Relay is an industry-standard, heavy-duty electromagnetic switch designed for seamless automation and electrical control circuits. Housed in a robust, transparent polycarbonate casing for easy visual inspection, this relay features a standard 8-pin octal base that effortlessly plugs into standard DIN-rail sockets.

Engineered to handle versatile control configurations, it features a DPDT (2 Form C) contact structure, allowing you to manage two independent electrical circuits simultaneously.

Key Features & Benefits

• Multi-Voltage Coil Availability: Choose the exact power configuration required for your project:

  • 12V AC/DC (Ideal for automotive, low-voltage DIY, and small electronics)

  • 24V AC/DC (Standard for industrial automation and HVAC control panels)

  • 230V AC (Perfect for mains voltage switching and heavy electrical machinery)

• Double-Pole Double-Throw (DPDT / 2C): Controls two independent lines with both Normally Open (NO) and Normally Closed (NC) contacts for ultimate wiring flexibility.

• Transparent Protective Casing: Clear shell allows maintenance teams to instantly visually check contact conditions, coil status, and operational mechanical movement.

• 10A High Switching Capacity: Built with premium silver alloy contacts capable of handling inductive and resistive loads up to 10A safely.

• Plug-and-Play Maintenance: Features an 8-pin round (octal) plug base, allowing lightning-fast replacement without disconnecting any panel wiring.

Technical Specifications

Standard 8-Pin Base Wiring Layout

The base pin diagram is conveniently printed directly on the front plate of the transparent casing for fast troubleshooting:

• Coil Terminals (Pins 2 & 7): Connects to your incoming control voltage supply (12V, 24V, or 230V).

• Pole 1 (Left Circuit):

  • Pin 1 — Common (COM)

  • Pin 4 — Normally Closed (NC)

  • Pin 3 — Normally Open (NO)

• Pole 2 (Right Circuit):

  • Pin 8 — Common (COM)

  • Pin 5 — Normally Closed (NC)

  • Pin 6 — Normally Open (NO)

Common Applications

• Industrial Control Panels: Linking PLCs to heavy-duty field actuators.

• HVAC Systems: Cycling compressors, dampers, and industrial exhaust fans safely.

• Water Pump Systems: Integrating float switches or pressure sensors with water pumps.

• Machine Automation: Used in packaging equipment, textile machines, and conveyor belts.
