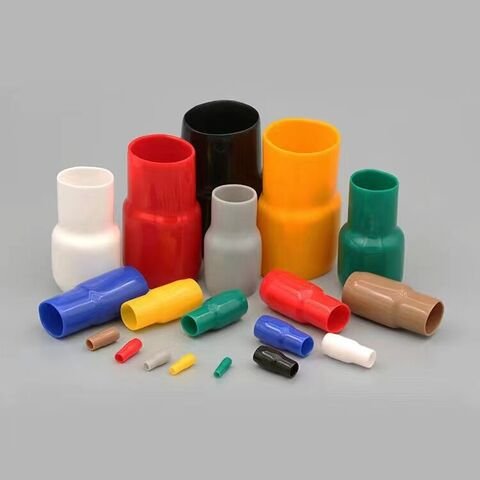

Insulated Cable Lug Boots & Terminal Color End Caps (1mm² – 300mm²)
Protect connections and streamline cable identification with high-grade, flexible PVC Cable Lug Boots and End Caps. Manufactured from soft, fire-retardant vinyl insulation, these terminal boots slip smoothly over crimped cable lugs and battery terminals to prevent short circuits, corrosion, dust accumulation, and accidental electrical shock. Available in a full range of sizes (1mm² to 300mm²) and industry-standard identification colors.
Key Features
Complete Short-Circuit & Shock Protection: Fully encapsulates exposed metal cable lug barrels and terminal connections to meet safety compliance standards.
Color-Coded Phase Identification: Available in standard phase and circuit colors (Blue, Brown, Gray, Black, Green, White) for clear circuit labeling and quick maintenance checks.
High-Flexibility Premium Soft PVC: Easy to slip over crimped terminals while providing a snug, vibration-resistant seal around the cable sheath.
Wide Compatibility Range: Fits standard copper cable lugs, aluminum crimp terminals, and ring connectors from 1.0mm² up to 300mm².
Technical Specifications
Feature
Specification
Material
Soft, High-Dielectric Vinyl PVC
Size Range
1.0 mm² to 300 mm² (Matching standard lug wire sizes)
Color Options
Red, Yellow, Blue, Black, Green, White, Grey
Temperature Rating
-40°C to +105°C
Dielectric Strength
Flammability Rating
UL94V-0 Self-Extinguishing
Application Type
Cable Lug Insulation, Battery Terminal Cover, End Protection
Sizing Matrix & Application Guide
Cable Size Range
Typical Lug Boot Application
1.0 mm² – 6.0 mm²
Small control panel wiring, switchgear, terminal block caps
10.0 mm² – 25.0 mm²
Residential distribution boards, inverter cables, sub-mains
35.0 mm² – 70.0 mm²
Commercial panel boards, battery bank terminals, solar arrays
95.0 mm² – 300.0 mm²
Industrial switchboards, transformers, heavy machinery power feeders
