Description

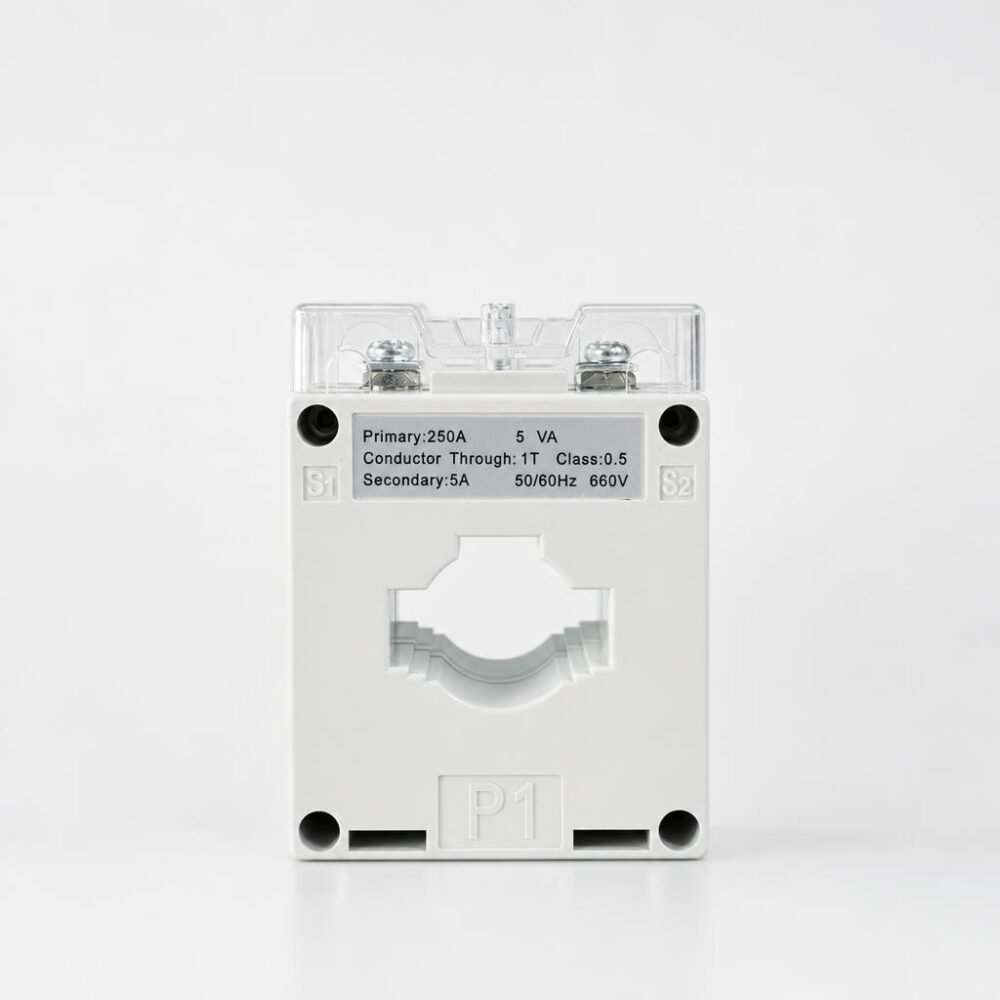

250/5A Current Transformer

Upgrade your electrical metering and monitoring systems with the high-accuracy MSQ-30 Current Transformer (250/5A). Engineered specifically for low-voltage switchgear, distribution boards, and control panels, this CT steps down high primary currents into a safe, manageable 5A secondary current for your analog meters, digital power meters, or protection relays.

Built to stringent quality standards, the MSQ-30 ensures dependable performance in residential, commercial, and heavy industrial environments.

Key Features & Benefits

• High Measurement Accuracy: Features a Class 0.5 precision rating, delivering accurate readings essential for energy metering and billing.

• Robust Construction: Encased in a durable, flame-retardant plastic housing for maximum safety and mechanical strength.

• Easy Busbar / Cable Installation: Designed with a convenient window aperture suitable for standard cable or busbar mounting inside panels.

• Wide Compatibility: Perfectly matches standard panel meters, energy analyzers, and protection equipment requiring a 5A secondary input.

Technical Specifications

• Model: MSQ-30

• Primary Current: 250A

• Secondary Current: 5A

• Accuracy Class: 0.5

• Rated Frequency: 50Hz / 60Hz

• Max Operating Voltage: 660V

• Mounting Type: Panel mount / Base mount

Current Transformer Applications

• Electrical control panels and distribution switchboards

• Energy meters and digital multi-function power analyzers

• Industrial machinery and factory automation monitoring systems

• Overload protection and power tracking circuits
