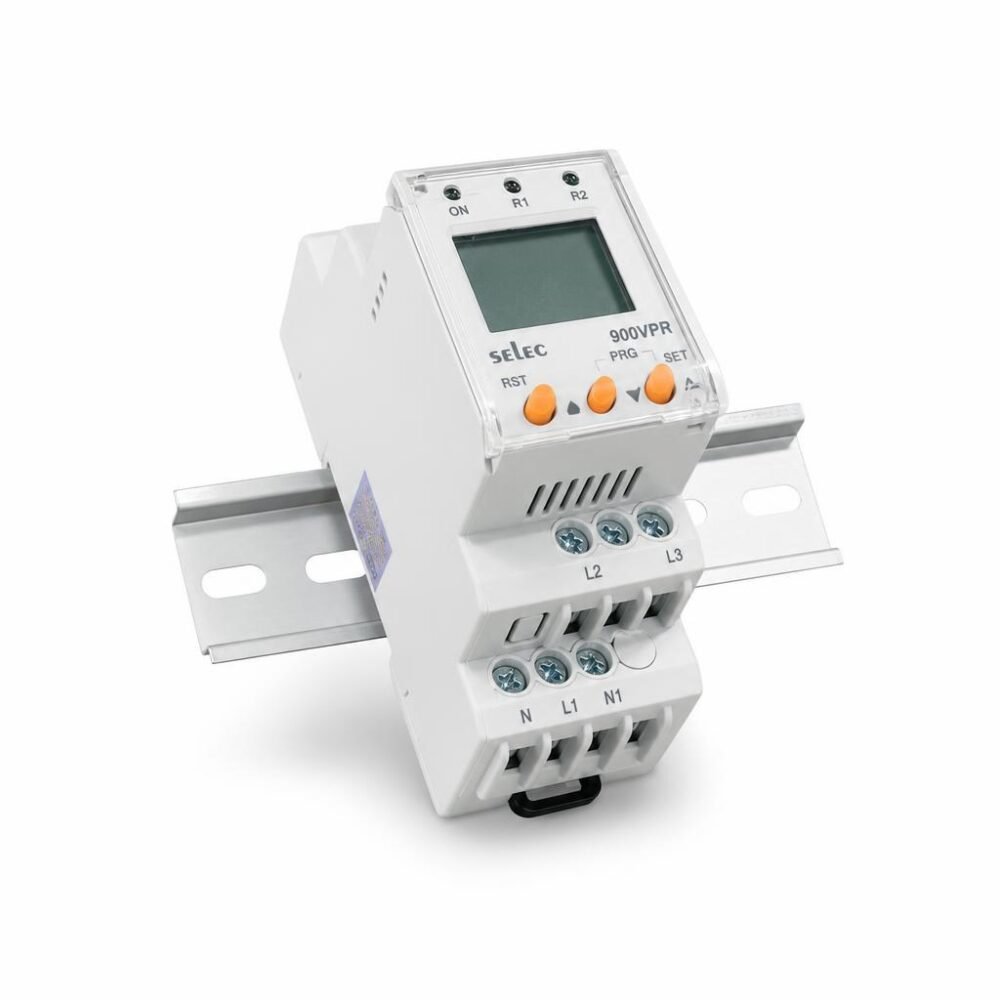

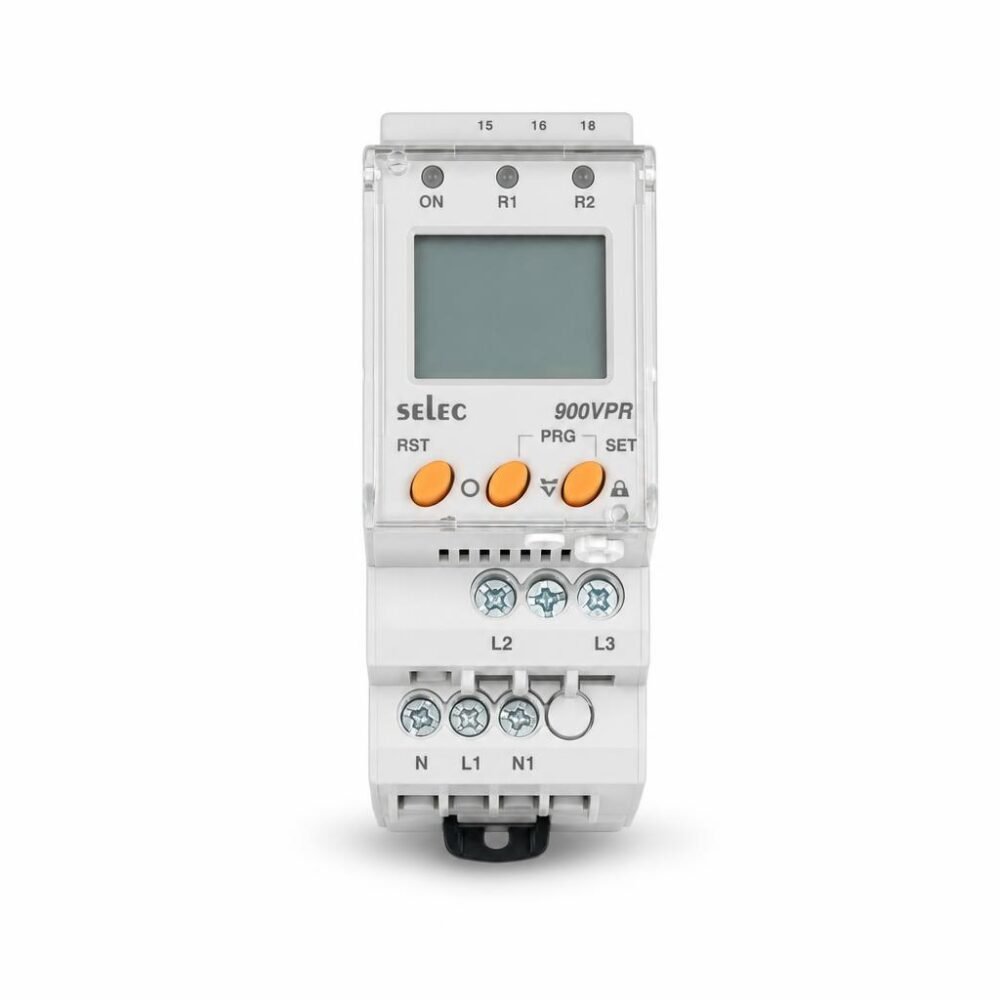

Name: Selec VPR 900 Voltage Protection Relay
Brand: Selec
Price: 17000 LKR
Availability: InStock

Selec VPR 900 Voltage Protection Relay

3 phase RMS voltage protection relay
Monitors: Over / Under Voltage, Over / Under Frequency, Phase (Asymmetry, Failure, Sequence)
Accuracy ± 1% of Voltage, ± 0.3Hz
Measuring range : 160 to 600V depending on Network selection
Supply range: 300 to 600V AC
UL certified

Guaranteed Safe Checkout

Description

Selec VPR 900 Voltage Protection Relay

Measuring Parameter	Under Voltage, Over Voltage, Under Frequency, Over Frequency, Phase Asymmetry, Phase Failure, Phase Sequence
Electrical Connection	3Ø-3W, 3Ø-4W
Display	3 digit Liquid Crystal Display without back light
Trip Setting	Under / Over Voltage : 280 to 600V AC L-L (for 3Ø-3W) :160 to 300V AC L-N (for 3Ø-4W), Under/Over Frequency : 45-65 Hz Voltage Asymmetry : 5.0-99.9%
Time Ranges	Trip Time Delay : 0-99.9 sec, Power ON Delay : 2-99.9 sec, Response Time : <200ms
Accuracy	Trip Voltage : ±1% of Set Value , Frequency : ±0.1Hz, Time Setting Accuracy : ±5% of setting +200ms
Output Contact	2 C/O (SPDT)
Output Rating	NC:3A @ 250V AC ,NO:5A @250V AC (Res)
Supply Voltage	280-600V AC(L-L), 160-300V AC(L-N)
Size	35 mm
Mounting Type	DIN Rail Mount
Certification	CE & UL
