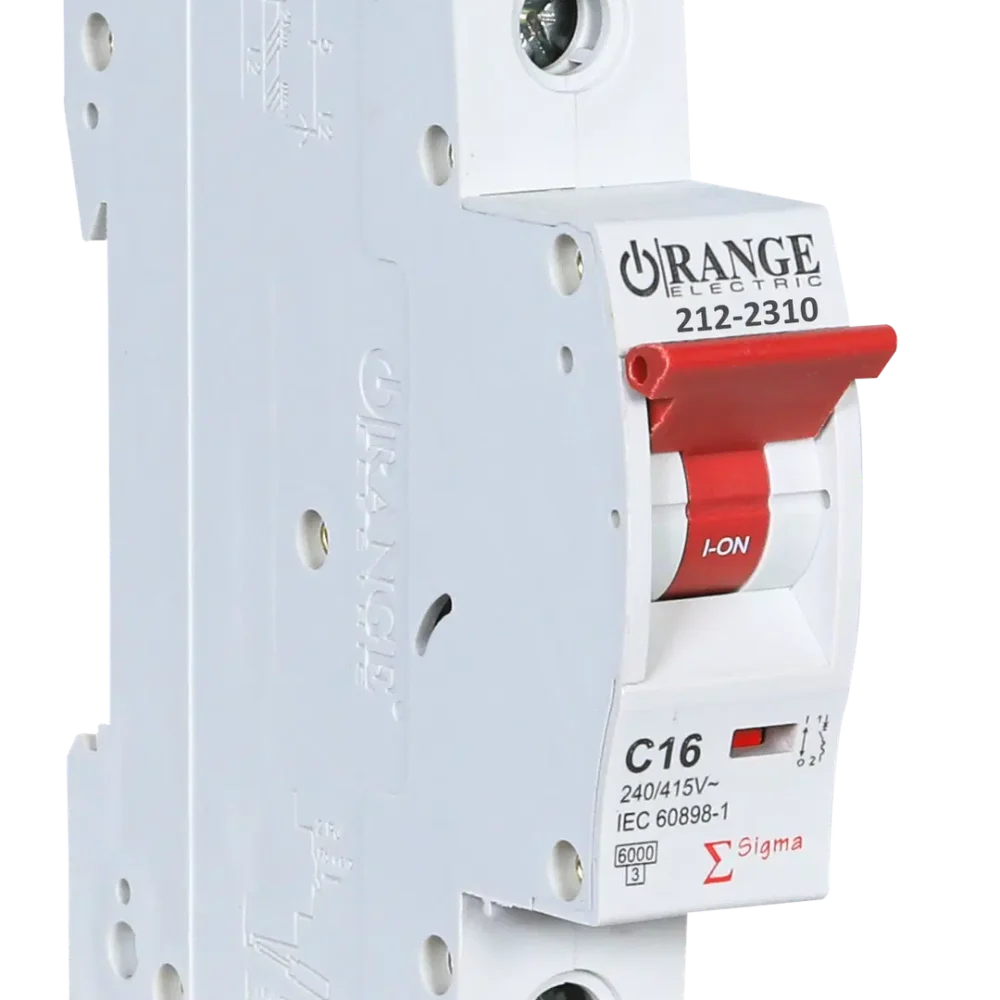

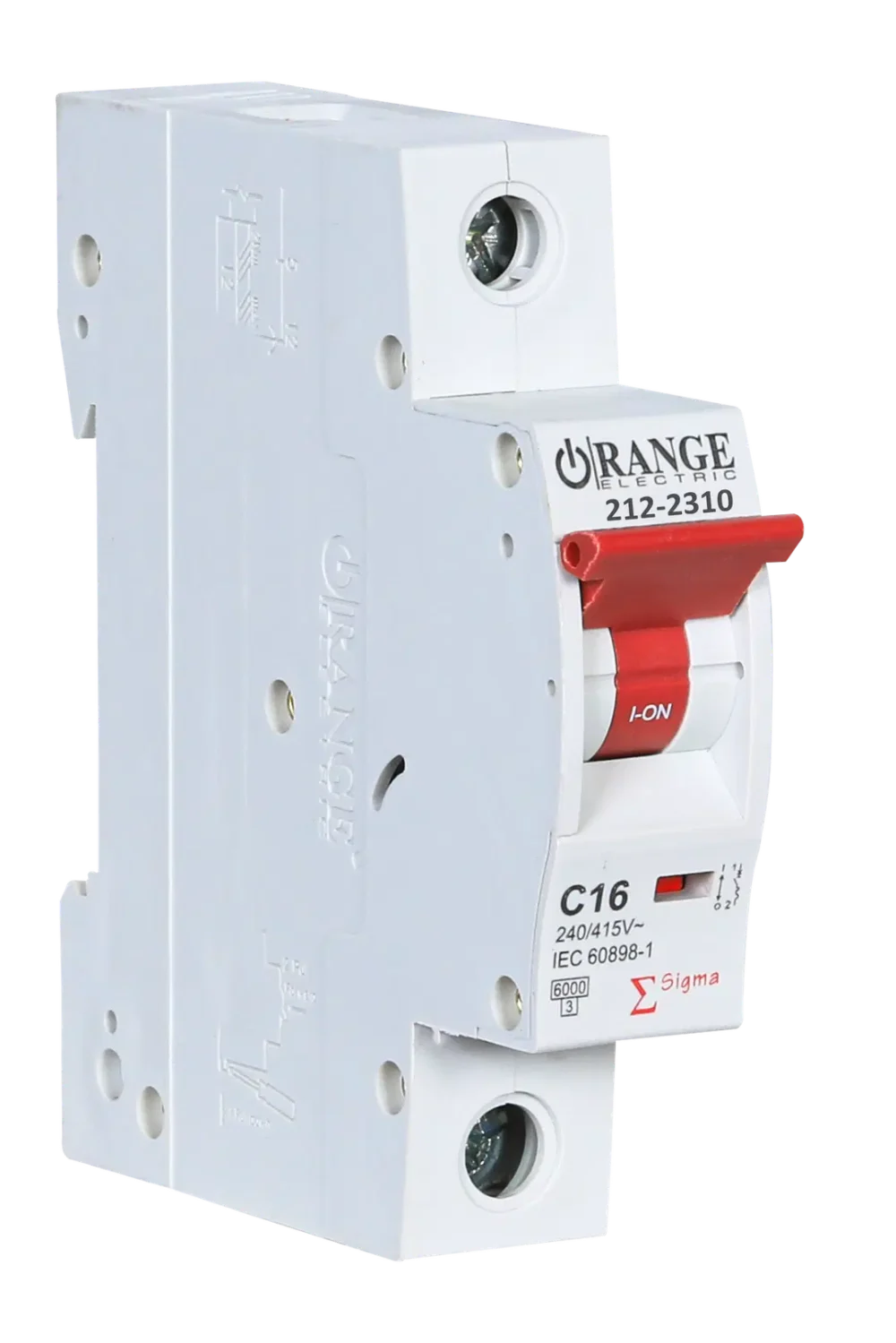

Sigma 16A MCB

Description

Sigma 1-Pole 16A Type-C 6kA Miniature Circuit Breaker (MCB)

Ensure reliable circuit protection for your residential, commercial, or industrial installations with the Orange Electric Sigma 16A MCB (Item Code: 212-2306). Engineered by Orel Group, this high-performance miniature circuit breaker combines robust overload and short-circuit protection with dependable thermal-magnetic release mechanisms.

Key Features & Specifications

• Item Code: 212-2306

• Rated Current: 16A

• Number of Poles: 1-Pole (All poles protected)

• Tripping Curve: Type-C (ideal for loads with moderate inrush currents)

• Rated Short Circuit Capacity: 6kA

• Rated Voltage: 240/415V AC at 50/60Hz

• Rated Impulse Withstand Voltage: 4kV

• Installation: Standard 35mm DIN rail mounting with secure screw-type terminals

• Operating Temperature: -5 – +40

• Ingress Protection: IP20 degree of protection

Certifications & Compliance

• Standards: Complies with IEC 60898-1 and SLS 1175 standards

• Certifications: SLS, KEMA, and CB certified

• Warranty: Backed by a Manufacturer Lifetime Warranty

Ideal Applications

Designed for general-purpose electrical distribution across residential buildings, commercial spaces, hotels, and industrial facilities.
