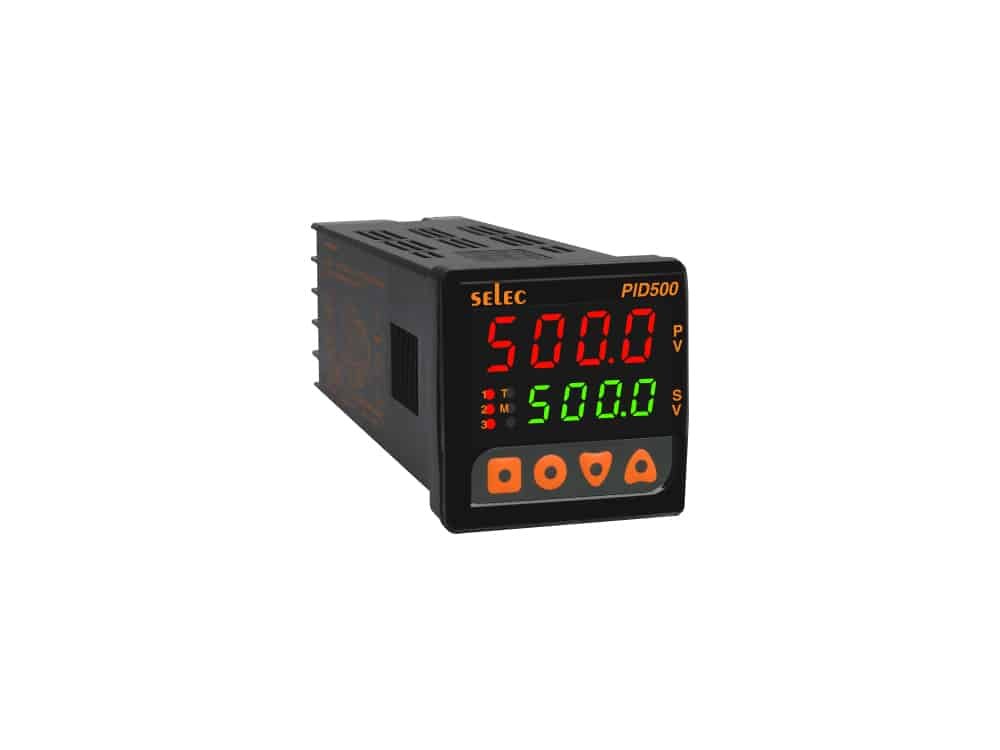

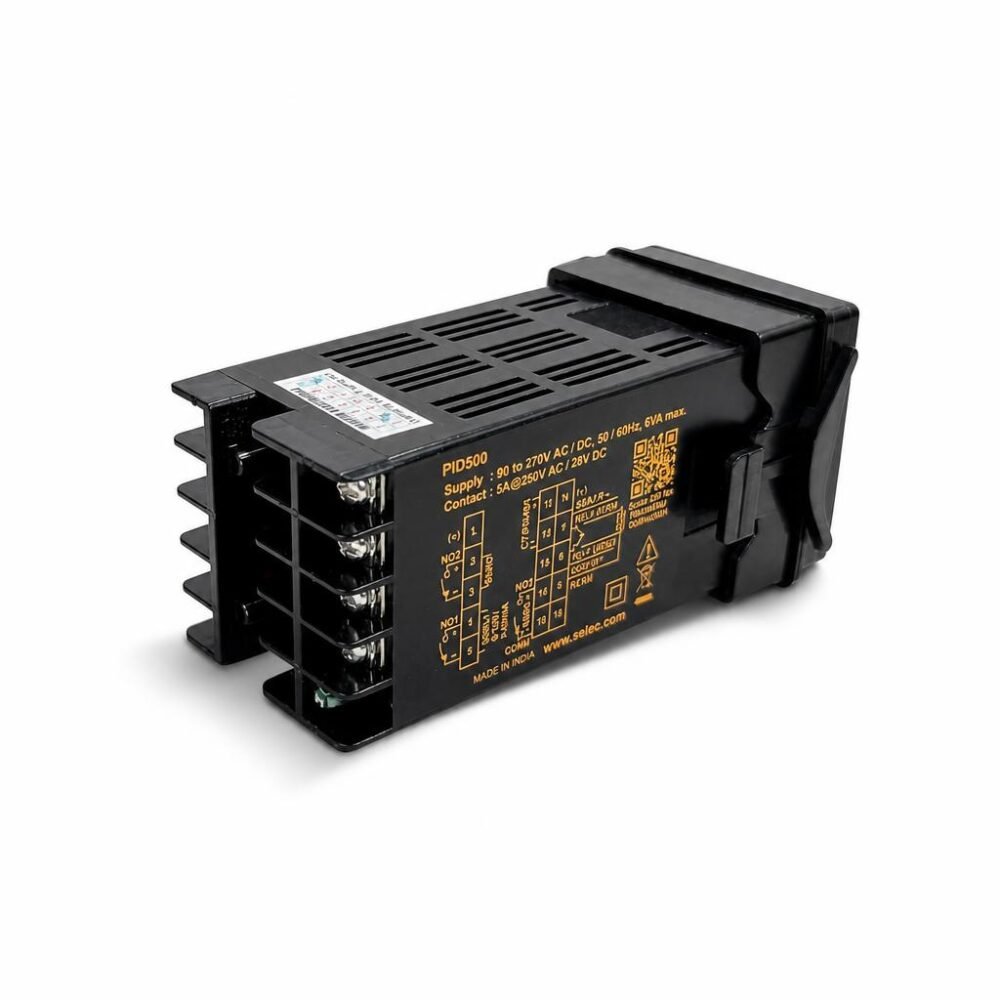

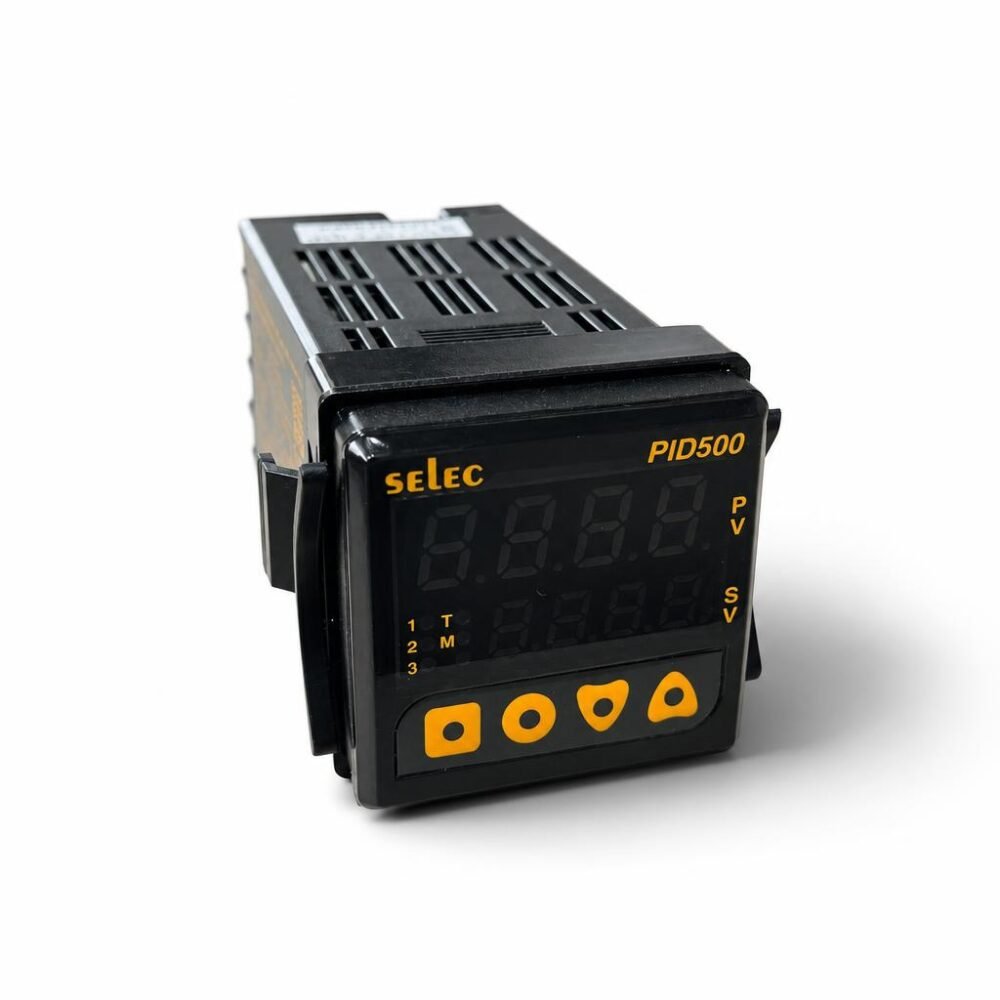

Selec PID 500 Temperature Controller

Original price was: රු20,750.00.Current price is: රු19,900.00.

  • 4 digit Dual bright display Advance PID temperature controller
  • Universal Input (TC: J, K, T, R, S/ RTD: PT100)
  • Signal input: (-5 to 56mV, 0 to 10V DC, 0 to 20 mA DC)
  • ON-OFF/Auto tune PID control
  • 3 set point
  • 5A relay control output
  • Dual Auxiliary 5A Relay output
  • 48 mm x 48 mm size
  • Single step Ramp-Soak function
  • Panel mount
  • 90 to 270V AC/DC supply voltage
  • CE, RoHS certified
Categories: , , , Brand:
Guaranteed Safe Checkout

Description

Brief Specifications

Display Type7 Segment LED Dual Display
Display Configuration4+4 digits
Type of InputsThermocouple: J, K, T, R, S, C,E, B, N, L, U, W, Platinel II. RTD: PT100, Signal Inputs: (DC) -5 to 56mV, 0 to 10V, 0 to 20mA (Selectable)
ResolutionTC / RTD : 1/ 0.1 Analog input : 1 /0.1/ 0.01/ 0.001
AccuracyFor TC (J, K, T) inputs: 0.25% of F.S. ±1 For R & S inputs: 0.5% of F.S. ±2 (20min of warm up time) For RTD inputs: 0.1% of F.S ±1
Control OutputRelay or SSR or Current : 4 to 20mA DC (max load 500E) or Voltage :0 to 10V DC(min load 10K)
Auxiliary OutputRelay
Control ModeAutotune PID / ON-OFF
FeatureSingle step ramp soak
CommunicationRS485 MODBUS communication (optional)
Supply Voltage90V to 270V AC/DC
Size48 x 48mm
Mounting TypePanel Mount
CertificationCE

Product Variants

Product CodeOutput 1Output 2Output 3CommunicationCertificationSupply Voltage
PID500-0-0-01Relay (5A)Relay (5A)Relay (5A)——90 to 270V AC/DC

Data Sheet

Instruction Manual
