Type 2 DC SPD, Imax 40kA, Class II PV Surge Protective Device

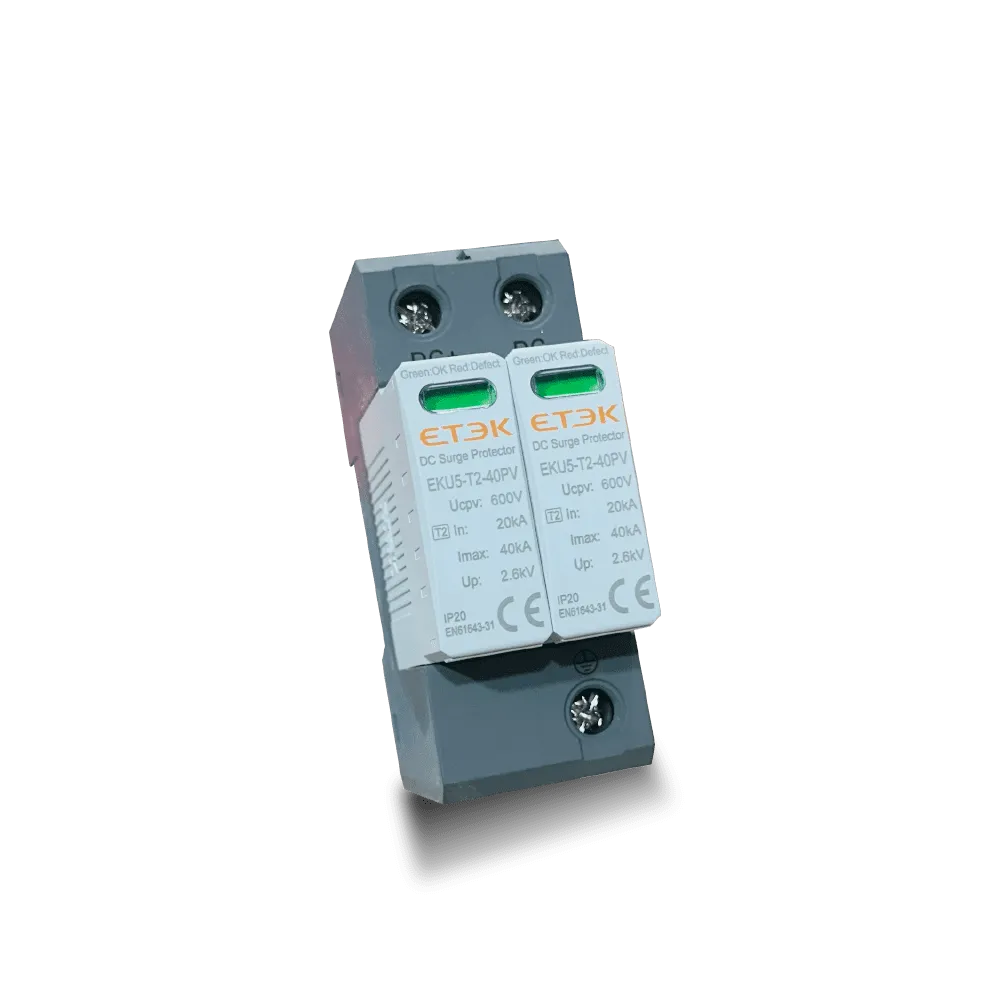

EKU5-T2-40 PV SPD is a DC surge protector specially designed for photovoltaic power supply systems. Max continuous operating voltage reach DC1500V.These units must be installed in parallel on the DC networks to be protected and provide common and different modes protection. Its installed location is recommended at both ends of the DC power supply line (solar panel side and inverter/converter side), especially if the line routing is external and long.
● Standard: IEC/EN 61643-31
● Surge Rating: Imax=40kA (8/20 µs)
● Voltage protection level (Up): <5,2kV
● IEC/EN Category: Class II / Type 2
● Max. continuous operating voltage (Ucpv): 600, 1000,1500V
● Housing: Pluggable Design
Porduct Overview
EKU5-T2-40PV Series is a pluggable multi-pole Type 2 PV Surge Protector (SPD) designed for use in photovoltaic solar applications. It is installed on the DC side to protect terminal devices in a PV system, such as solar panels and inverters, from the effects of lightning surge currents.
Technical parameters
Technical Data
No.of poles
2P(2Mods),3P(3Mods)
Location of Use
String box, Inverter
Mode of protection
(DC+)-PE,(DC-)-PE,(DC+)-(DC-)
Protective elements
High Energy MOV
Maximum continuous operating DC voltage
Ucpv
600V
1000V
1500V
Norminal discharge current (8/20μs)
In
20kA
Total discharge current (8/20μs)
ITotal
40kA
Maximum discharge current (8/20μs)
Imax
40kA
Voltage protection level (2P)
Up
2.6kV
4.0kV
/
Voltage protection level (3P)
Up
/
4.0kV
5.2kV
Response time
tA
≤25ns
Operating temperature range
Tu
-40℃ to +80℃
Operating state/fault indication
Green/Red
Cross-section area (Min.)/(Max.)
4mm²/35mm²
Mounting
35 mm DIN Rail, EN 60715
Enclosure material
Thermal Plastic UL94-V0
Degree of protection
IP20 (built-in)
